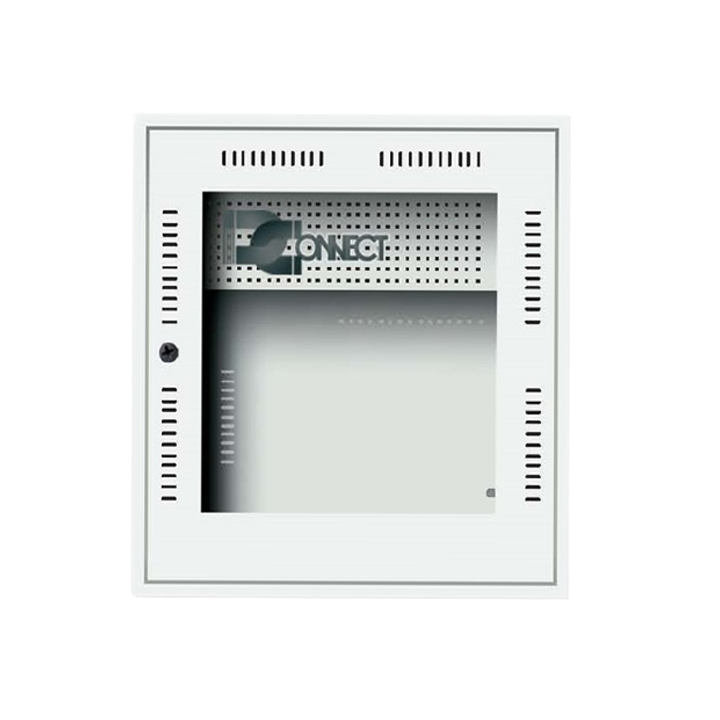

The DConnect FTTH ONU Wall Cabinet offers secure mounting for ONU and fibre termination devices in a condensed footprint. Built for long-term durability, it provides professional appearance and flexible access for installers.
As a leading FTTH ONU wall cabinet supplier in Saudi Arabia, we provide fully compliant enclosures tailored to offices, hospitals, and educational institutions.
Product Features
- Long life: SPCC cold-rolled steel body with welded frame ensures long-term strength.
• Front door: Vented frame with toughened glass for visibility and ventilation.
• Depth flexibility: 150 mm standard depth, 300 mm optional depth with added capacity.
• Cable entry: Adjustable openings at the top and bottom panels for organised cabling.
• 4U mounting plate option: Supports installation of 19″ rack equipment in the same cabinet.
• Flush-mount option: Optional frame allows seamless wall integration.
• Professional finishes: Grey (RAL 7035), Off-White (RAL 9010), and Cream (RAL 9001).
Specifications
| Category | Specification |
| Material | SPCC cold-rolled steel, fully welded construction |
| Thickness | Mounting profiles: 1.5 mm; Panels: 1.2 mm |
| Size | 12U, 600 × 600 × 150 mm depth; optional 300 mm depth |
| Door | Vented border door with toughened glass |
| Cable Management | Knockouts on top and bottom panels |
| Mounting | Wall-mount or flush-mount with optional frame |
| Load Capacity | Up to 60 kg static load |
| Finish | Multi-stage treated, phosphoric-coated, powder-coated |
| Protection | IP20 rated |
| Compliance | ANSI/EIA RS-310-D, DIN41497, DIN41494, GB/T3047.2-92 |
| Colours | Grey (RAL 7035), Off-White (RAL 9010), Cream (RAL 9001) |
Applications
The FTTH ONU wall cabinet is trusted in:
• Office and retail networks – Compact ONU and fibre termination housing.
• Hospitals and schools – Professional-grade structured cabling enclosures.
• Structured cabling hubs – Efficient space-saving solutions.
• Enterprise network points – Organised ONU and fibre distribution setups.
Available Configurations
- Depth options: 150 mm (standard) and 300 mm (optional).
• Finish options: Grey, Off-White, or Cream.
• Flush-mount frame available for seamless installation.
Specifications and bundles may vary by model. Request a quotation for exact details.
