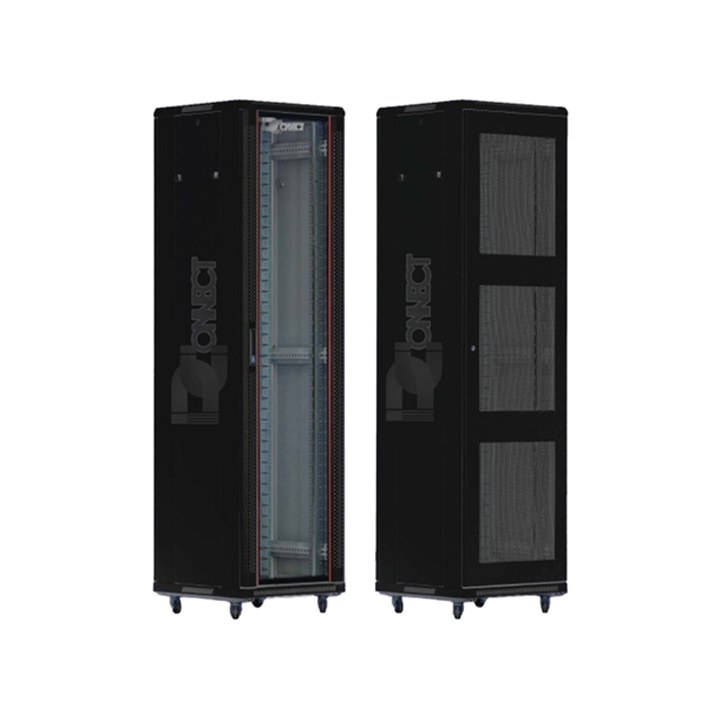

The DConnect Server & Networking Cabinet combines strength, compliance, and flexibility in one solution. With robust construction, modular accessories, and heavy-duty support, it ensures secure equipment deployment and long-term infrastructure growth.
As a recognised server & networking cabinets supplier in Saudi Arabia, we provide pre-tested, standards-compliant solutions trusted by enterprises, integrators, and telecom operators.
Product Features
- Global standards compliance (ANSI/EIA, IEC, DIN, ETSI).
• SPCC steel body with aluminium-zinc profiles.
• Thickness: 2.0 mm profiles, 1.5 mm angles, 1.2 mm panels.
• 800 kg static load capacity.
• Toughened glass front door and solid steel rear door.
• IP20 protection for secure indoor use.
• Degreased, vitrified, and powder-coated finish.
• Levelling feet for stable installation.
• Body in RAL 7035 Grey / RAL 9004 Black; trim in RAL 7035 Grey / RAL 9004 Black.
Specifications
| Component | Details |
| Rack Dimensions | 42U / 47U height, 800 mm width, 1000–1200 mm depth |
| Material | SPCC cold-rolled steel with aluminium-zinc profiles |
| Thickness | Profiles: 2.0 mm; Angles: 1.5 mm; Panels: 1.2 mm |
| Doors | Front: Toughened glass; Rear: Solid steel; reversible |
| Surface Finish | Degreased, vitrified, powder coated |
| Protection Rating | IP20, protects against objects >12 mm |
| Load Capacity | Up to 800 kg static load |
| Cooling Options | 2- or 4-fan roof kits with ventilation slots |
| Accessories | Shelves, vertical cable managers, casters |
| Colours | Body: RAL 7035 Grey / RAL 9004 Black; Trim: RAL 7035 Grey / RAL 9004 Black |
Applications
DConnect server cabinets are trusted in:
• Data Centres & Server Rooms – secure racks for IT infrastructure.
• Telecoms & Networking – housing switches, patch panels, and fibre systems.
• Industrial Control Rooms – protecting automation and process systems.
• Corporate & Campus IT – organised cable management and secure deployment.
• Security & Surveillance – safe housing for NVRs, DVRs, and video servers.
Available Configurations
- 42U and 47U heights
• 800 mm width
• 1000 mm or 1200 mm depth
Options & Accessories:
• Roof fan kits (2- or 4-fan)
• Adjustable shelves
• Vertical cable managers
• Locking system options
• Levelling feet or casters
• Colour options: RAL 7035 Grey / RAL 9004 Black (trim in RAL 7035 Grey or RAL 9004 Black)
Specifications and bundles may vary by model. Request a quotation for exact details.
