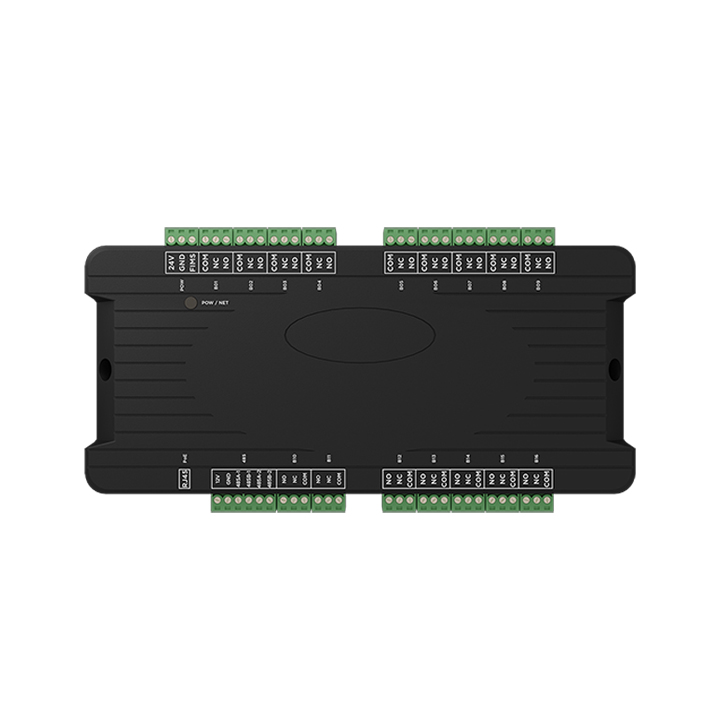

EVRC-IP – Elevator Control Module

EVRC-IP is an intercom-lift controller that allows occupants or tenants to call the lift to their floor from their intercoms or through a mobile app. The EVRC-IP system enables facility managers to connect the intercom systems within individual apartments or spaces within a building to the lift management system.

It also allows residents to let their guests in and bring them up to their floor through a single interface.

Product Features

  • Supports buildings with up to 16 floors: Designed for multi-floor building integration.
  • Wide operating temperature range: Operates reliably between –40°C to +70°C.

Specifications



Category Specification
Rated Voltage PoE support
Rated Power 7 W
Standby Power 1 W
Working Temperature -40 – +70 °C
Storage Relative Humidity 20% – 93%
Max Modules per System 98
Box Dimensions 235 × 142 × 57 mm
Gross Weight 0.61 kg
