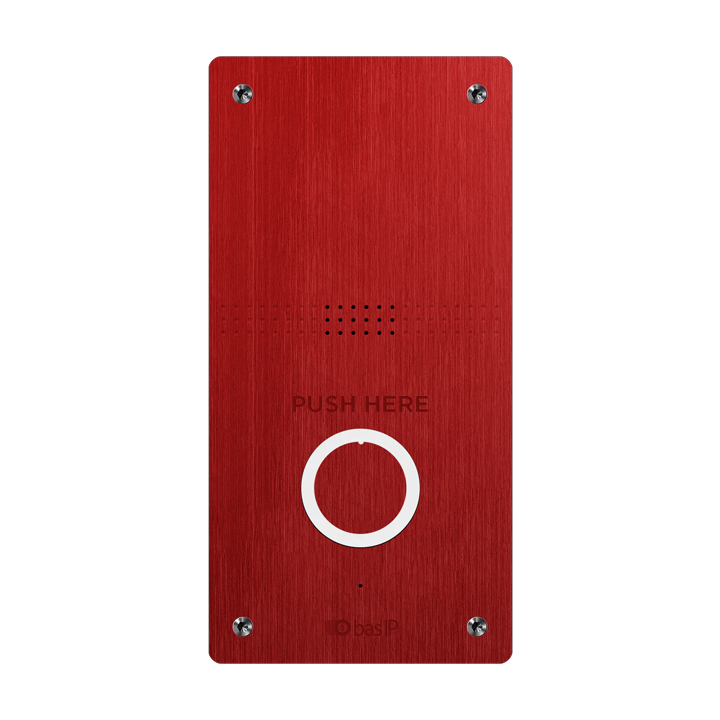

Intercom Panel – AV-04AFDI / AV-04SDI

AV-04AFDI is an emergency intercom panel used in the event of safety or security incidents, such as fire, intruders, or natural disasters, to communicate with security teams, emergency responders, and building management. These panels are built for extreme conditions and come with an IK10 impact rating and IP65 dust and waterproof ratings.

The AV-04AFDI offers stable, clear, and intuitive operations during emergency scenarios. The device features a microphone and a loudspeaker for clear two-way communication and comes with a mechanical push button which when pressed initiates communication with the designated team.

The panel is available in red, green, and silver colours.

Product Features

  • Built for extreme operating conditions: IP65 dust and waterproof rating, IK08 impact rating, operates between –40°C to +60°C.
  • Single button interface: Users simply press a button to be immediately connected to the relevant department or team.
  • Easily visible design: Available in three highly visible colours for a low-friction user experience.

Specifications



Category Specification
Panel Type Individual
Camera No
IK-Code IK10
Protection Class IP65
Working Temperature -40 – +65 °C
Power Consumption 6.5 W, in standby – 2.5 W
Power Supply PoE, +12 V DC (+12% -6%)
Case Aluminium
Colours Green, Red, Silver
Dimensions 95 × 190 × 27 mm
Installation Type Flush mounting
Box Dimensions 235 × 126 × 78 mm
Gross Weight 0.91 kg
Interface WEB-interface
Call Button Mechanical
Number of Ringtones 4 polyphonic ringtones
Authentication WEB-interface
Talking Mode Duplex
Additional Features SIP P2P, Open API
