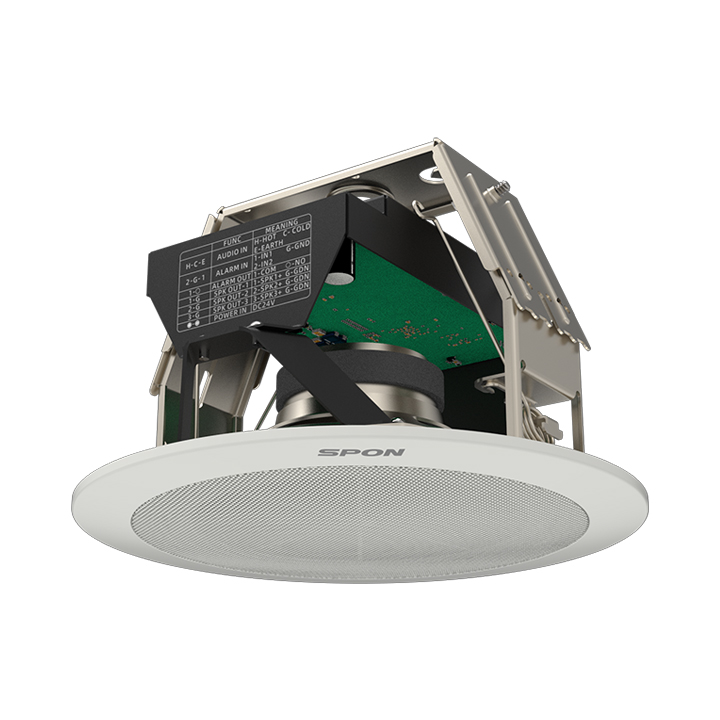

GEN-6213A01 Network Ceiling Speaker

The GEN-6213A01 Network Ceiling Speaker is designed to play background music or relay important information to the staff, visitors, employees, or guests in retail stores, shopping malls, or corporate offices. The system comes with Bluetooth connectivity for playing music from mobile devices or PCs and an 80MB storage for playing back audio files.
The speaker comes with a built-in DSP and a powerful amplifier ensuring high quality audio output from the GEN-6213A01. The speaker can be used with a microphone to use the speaker as an intercom.
The speaker is easy to install and set up. The speaker firmware uses open standards making it easy to integrate the speaker with existing systems and it’s POE capabilities minimises cables during installation.

Product Features

  • Highly flexible deployment options: Remote control via HTTP, Bluetooth connectivity, and support for up to 3 additional speakers for wider sound coverage.
  • Built on open standards: Enables easy integration with existing facility management systems.
  • Snap-on design: Allows quick and easy ceiling installation.

Specifications



Category Specification
Power Source DC 24V, PoE (IEEE802.3af/at)
Power Consumption ≤3W
Network Protocol TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio Codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency Response 100 ~ 16KHz
Power Output 4 × 3W (DC 24V / PoE / PoE+)
Network Interface 100BASE-TX, RJ45 Connector
Audio Input x1, Line/Mic input (Balanced, Switchable)
Control Input x2
Control Output x1
Operating Temperature -10℃ ~ +50℃
Housing Material Sheet metal, ABS
Dimensions 180 × 120.5 mm
Weight 630 g
