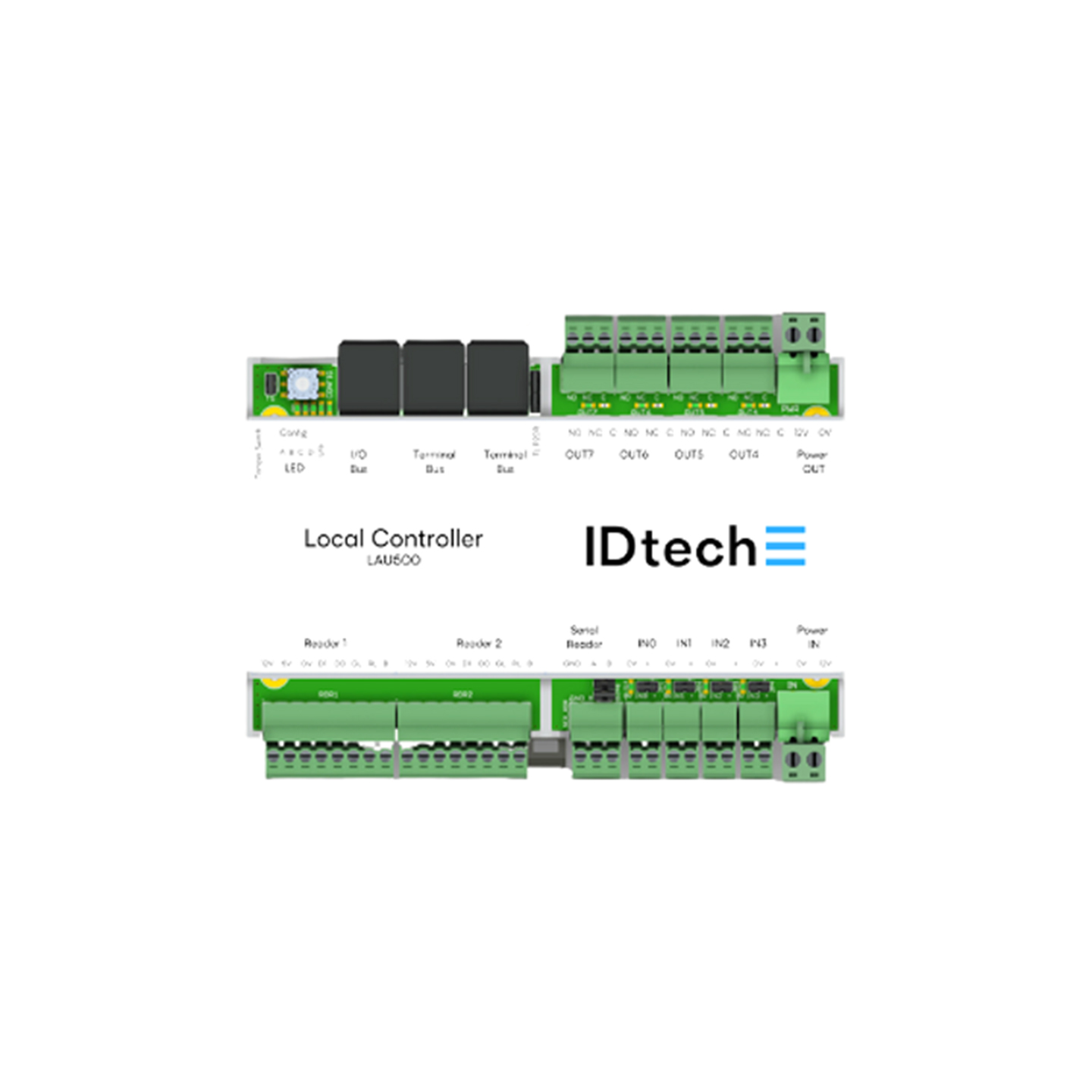

LAU500

Functionalities:

Controls the opening and closing of single, double, or armoured doors, security airlocks, barriers, one- or two-way automatic gates, turnstiles etc

Manages and powers door accessories in 12 V (max. 4 A): contacts, electromagnets, electric door openers, magnetic strips, exit pushbuttons, emergency exit buttons, etc.

Remote connection to the LAU500 is possible via the Ethernet (or LAN) network through the controller (configuration changes, firmware updates)

Reliability

Hardware operation control and automatic restart on system failure

Network monitoring via Unipass

Automatically resetting fuse on each power output

Overvoltage and reverse polarity protections of digital/analog inputs at 15 V

Encrypted communication with readers

Configurations

Available in metal housing or for DIN rail mounting

Manages up to 2 readers: entry/exit on 1 door or 2 entry-only doors

Supports all readers supplied by IDtech and most third-party readers, as well as QR-code, biometric, licence plate, and long-distance readers

Compatible with a variety of identification technologies such as iClass®, Seos™, MIFARE®Classic, DESFire® EV1/EV2/EV3

Supports the latest communication protocols OSDP and SSCP

8 addressable inputs to connect push buttons, door status contacts, emergency buttons or other status contacts (expandable to 16 with an additional I/O module)

4 addressable outputs to connect door locks or to give contacts to external devices such as alarm systems or intercoms (expandable to 8 with an additional I/O module)

Installation

Quick and easy installation and wiring: drilling and wiring diagrams provided

Metal housing with cable slots in the top edge

Connected in bus (RS-485) to the IDtech master controller (MC)

Power supplied by an external 12V DC supply

Connection to peripherals through removable connectors
