Product Features
- Continuous and reliable operation: Cutting-edge processing capabilities and optimized memory ensure uninterrupted functionality during server disconnections.
- Scalable Design: Users can choose from the MC504, MC510 and MC516 variants based on the number of local access units (LAUs) and reader requirements
- Dynamic configuration: Designed to adapt to the ever-evolving access control needs through secure, remote updates and configuration management via an encrypted web interface.
- Enterprise-grade security: Encryption of communications with the server (AES and TLS), leverages NAC802.1x network access protocol and Simple Certificate Enrollment Protocol (SCEP) for automated certificate management
- Seamless integration: 100% compatible with the complete range of IDtech controllers, enabling unified security administration.
Features:
Functionalities
- Autonomous access control management
- Automatic transfer of events to the server
- Large memory capacity: up to 200,000 identification media (cards, badges, etc.) and 1,000,000 events
- Scheduled automatic door opening and closing
- Anti-passback
- Office mode
- Fire control function to allow emergency evacuation
- Management of door accessories related to access control (push buttons, door sensors, electric locks…)
- Integrated Ethernet network module and possibility to enable AES Encryption or encryption using TLS certificates
- Remote connection to the controller possible via the network (firmware upgrades, updating of a connected LAU500…)
Configurations:
- Available in metal housing (12 V and 230 V) or for DIN rail mounting

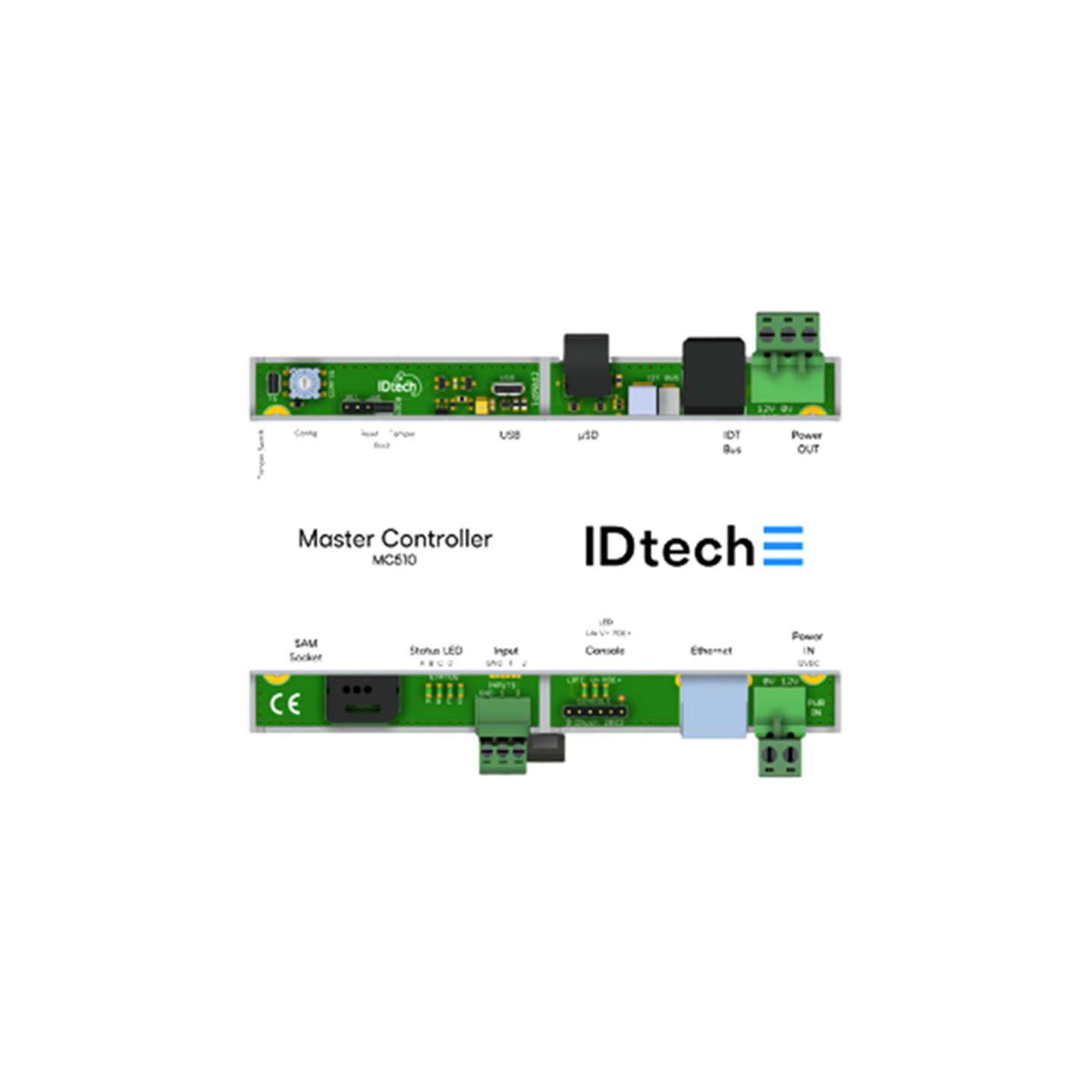

- Controls up to 4 IDtech local access units (LAUs) and 8 readers in the MC504 version, or up to 10 LAUs and 20 readers in the MC510 version, or up to 16 LAUs and 32 readers in the MC516 version
Reliability:
- All events and parameters are stored to ensure the access control and alarm management functions are fully carried out even when the connection to the server is lost
- Can be equipped with a backup power supply (BPS) to ensure continuous operation in the event of a temporary power failure
- Automatic data synchronisation between controller and server after a communication failure
- Hardware operation control and automatic restart on system failure
- Network monitoring via Unipass
