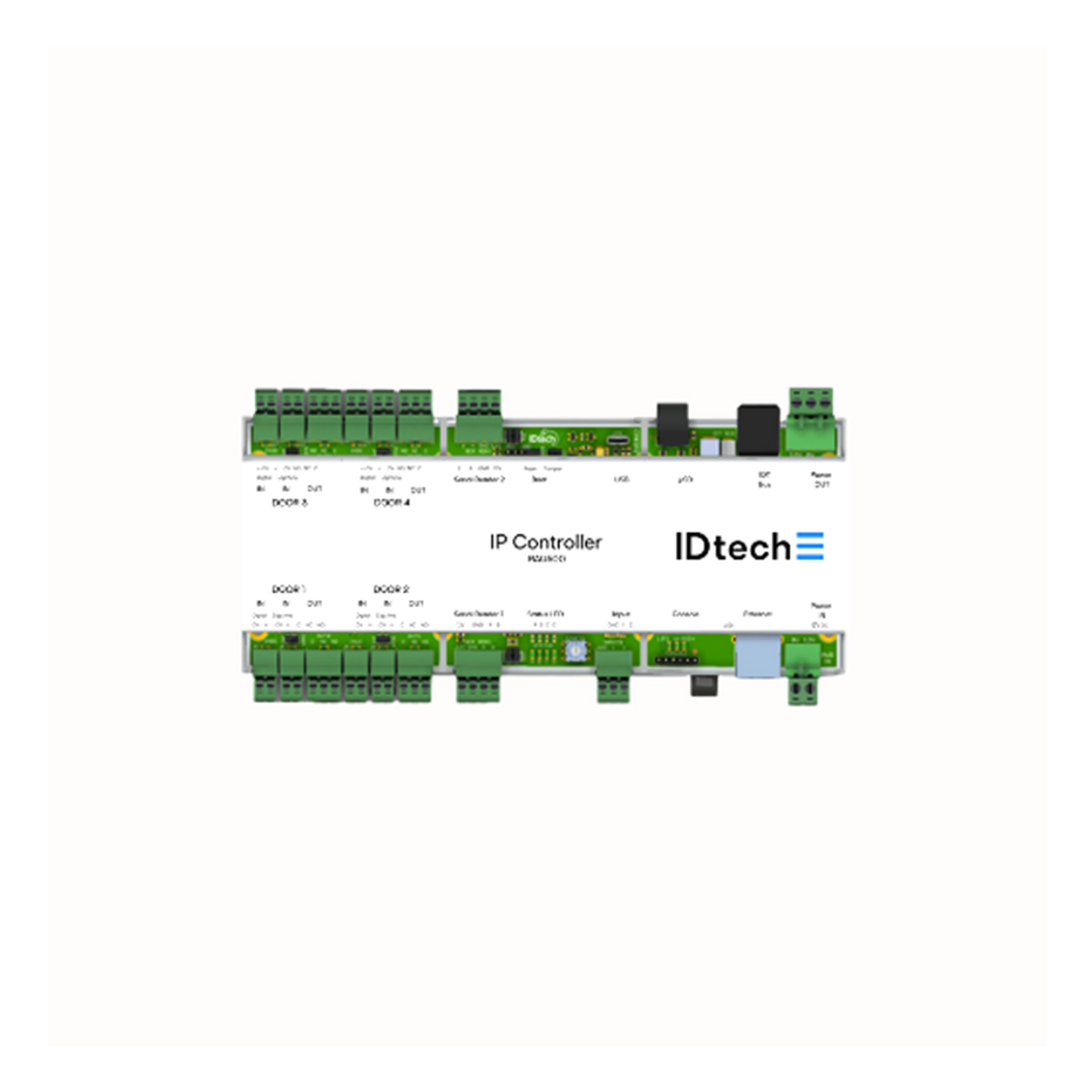

RAU500 (IP Controller)

Product Features

Enhanced memory and a powerful processor enables RAU500 to manage access control and alarm responses even during server disconnections

Ensures secure communication with both readers (OSDP and SSCP) and the access control software Unipass (AES128 and TLS1.2 encryption).

Remote updates and configuration changes enables flexible adaptation to meet evolving access control requirements

Supports the latest identification technologies, full range of IDtech readers, as well as a wide range of specialised readers (QR Codes, biometrics, number plates and long distance).

Seamless integration with IDtech hardware and software suite.

SAM card support for transparent key management

Advanced network security features:

• NAC802.1x network access protocol
• Simple Certificate Enrollment Protocol (SCEP) for automated digital certificate management. This functionality allows Automatic certificate request and renewal capabilities through certification authority (CA)

Features

Functionalities

• Autonomous access control and alarm management
• Works directly with readers
• Supports the reader updater of the UniloQ product range
• Automatic transfer of events to the server
• Large memory capacity: up to 500.000 ID media (key fobs, cards…) and 5.000.000 events
• Scheduled automatic door opening and closing
• Anti-passback
• Office mode
• Fire control function to allow emergency evacuation
• Management of door accessories related to access control (push buttons, door sensors, electric locks…)
• Integrated Ethernet network module and possibility to enable AES Encryption or encryption using TLS certificates
• Remote connection to the controller via the network (firmware upgrade, configuration of readers in OSDP/SSCP).

Configurations:

• Available in metal housing (12 V and 230 V) or for DIN rail mounting
• Controls up to 4 readers: entry/exit on 2 doors or entry only on 4 doors
• Supports the full range of readers supplied by IDtech and most third-party readers, as well as QR code readers, biometric readers, license plate readers, and long-range readers
• Supports secure communication protocols (OSDP and SSCP)

Reliability

• All events and parameters are stored to ensure the access control and alarm management functions are fully carried out even when the connection to the server is lost
• Can be equipped with a backup power supply (BPS) to ensure continuous operation in the event of a temporary power failure
• Automatic data synchronisation between controller and server after a communication failure
• Hardware operation control and automatic restart on system failure
• Network monitoring via Unipass
• Encrypted communication with readers (OSDP/SSCP)

Installation

• Connection to peripherals through removable connectors
• 8 addressable inputs to connect push buttons, door status contacts, emergency buttons or other status contacts (expandable to 16 with an additional I/O module)
• 4 addressable outputs to connect door locks or to give contacts to external devices such as alarm systems or intercoms (expandable to 8 with an additional I/O module
• PoE+ (30W) optional (to order). Of the 30W, 15W is reserved for internal electronics, i.e. 15W (1A25) available for readers, strikes, etc.
