Product Features
Seamlessly integrates with popular access control systems using Wiegand. Available in varied formats: Wiegand 26, 32 or 37 bits.
Pre-configured for immediate deployment, Plug & Play functionality

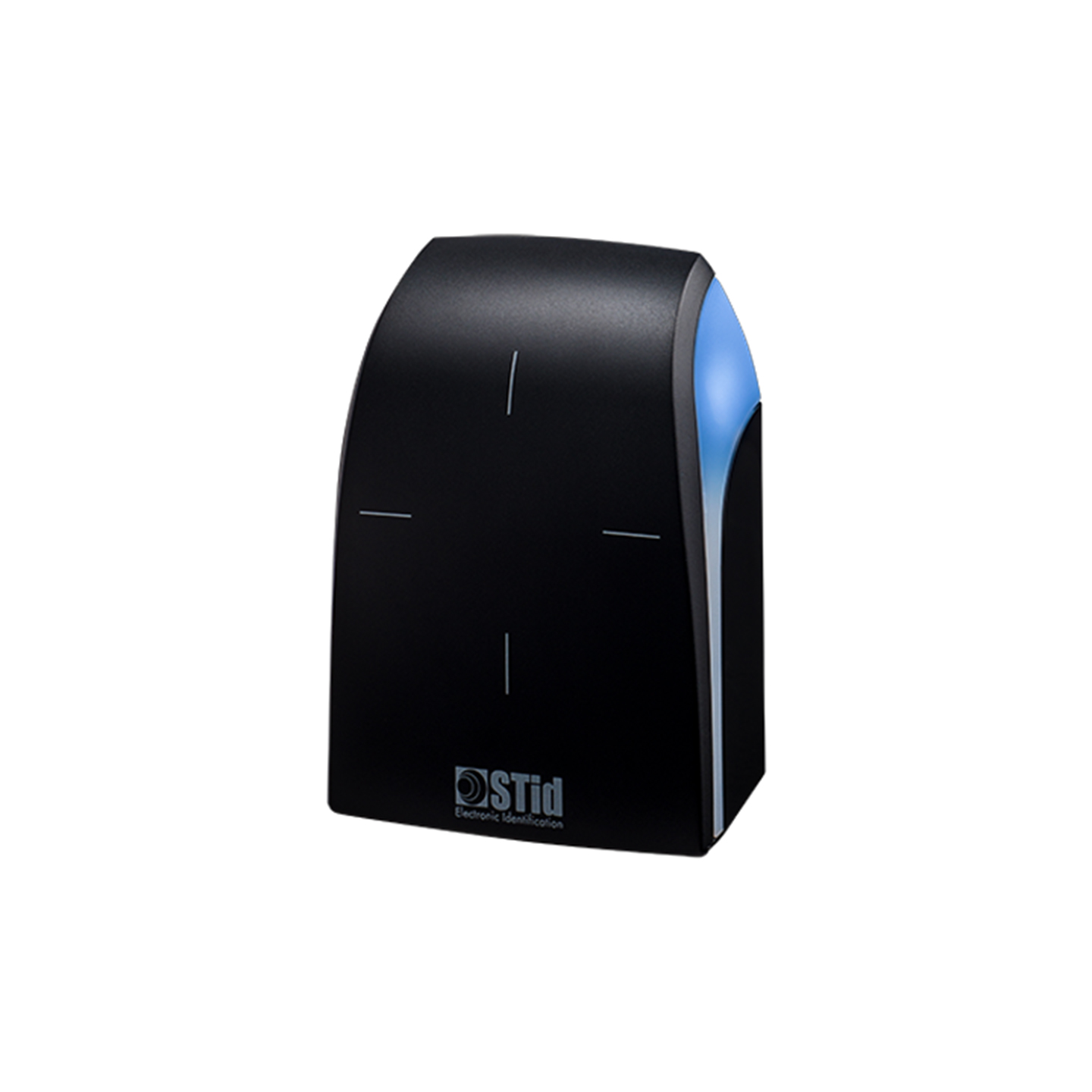

A multi-technology reader, the ARCS-A Easyline reader simplifies the management of extensions, upgrades, and technology migrations.
Easy to install: Specifically designed for placement on various surfaces like metal, concrete, bricks, etc, without spacers. The ARC-A Easyline reader is compatible with both European and American flush-mounting boxes. The removable terminal block enhances installation flexibility.
Enhanced security: The reader supports the latest MIFARE® DESFire® EV2 contactless chip technologies with their advanced data security features:
- Secure Messaging EV2 protects against stripe and replay attacks.
- Proximity Check: protection against relay attacks
- Security-standard encryption & advanced key management mechanisms minimises the risk of duplicated card or compromised data
Durability: The reader has weatherproofed capabilities and a vandal-resistant casing. The ARC-A Easyline can operate outside (IP65 level) and offers a high impact resistance (IK10).
Specifications:
Frequency: 13.56 MHz
Chip: MIFARE® DESFire® EV2, NFC (HCE)
Interfaces: Wiegand 26, 32 or 37 bits
Power supply: 7 – 28 VDC / Consumption: 130 mA/12 VDC max
Color: Black
Operating temperatures: – 30°C to + 70°C
Protection: IK10 certified reinforced vandal-proof structure
Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
Functions: Pre-configured secure read only
Reading distances: 0 – 8 cm
Material: ABS-PC UL-V0 (black)
Dimensions (h x w x d): 106,64 x 80 x 25,70 mm / 4.21’’ x 3.15‘’ x 1.02’’
Storage temperature: -40°C to +85°C
Resistance: IP65 level (excluding connectors) – weather, water and dust resistant (CEI NF EN 61086 certification) / Humidity: 0 – 95%
