Product Features

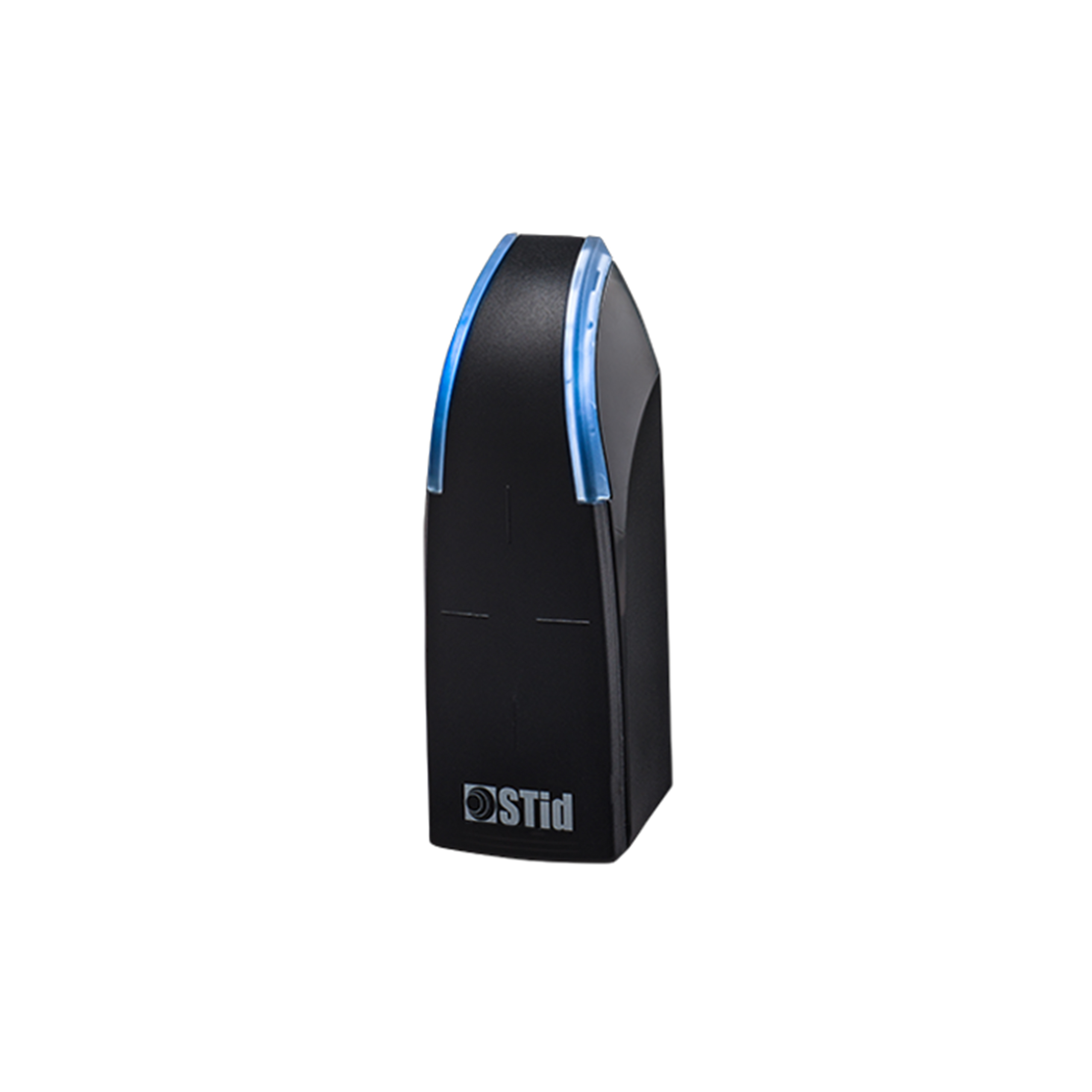

Compact Design and flexible installation: ARC1S/BT is designed to be installed in spaces requiring a small footprint such as door frames, narrow electrical junction boxes, sliding doors, fast access control corridors, and elevators. Its sleek & optimized design enables perfect integration, whatever the installation environment and without additional spacers, even on metal. The pluggable cable and the mounting base make it easier to install.
Multi-Technology Reader: Seamlessly integrates multiple identification technologies for enhanced access control. It can read RFID (MIFARE Classic, Plus, DESFire), NFC, and Bluetooth credentials.
5 modes of identification: Supports card mode, tap-tap, voice control, remote access mode and hands-free mode for enhanced user experience. Choose your preferred identification mode and make your access options both secure and intuitive!
Secure Communication: The reader supports the latest contactless technologies with the newest data security devices:
- Secure Messaging EV2: transaction security that acts as a protection against interleaving and replay attacks.
- Proximity Check: protection against relay attacks
Flexible Communication: The reader supports multiple communication protocols (TTL, Wiegand, RS485, OSDP) for seamless integration
Durable Construction: The device has IP65 rating which ensures protection against harsh environmental conditions. Suitable for indoor and outdoor use.
Customisable options: Supports various operating modes and can be configured to meet specific application requirements.
Specifications
Frequency: 13.56 MHz + Bluetooth® (Low Energy)
Chip: STid Mobile ID® (Bluetooth® and NFC HCE virtual cards), Orange Pack ID + MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus® (S/X) & Plus® EV1, DESFire® 256, EV1, EV2 & EV3, NFC HCE, PicoPass® (CSN only), iCLASS™ (CSN only)*
Interfaces: TTL Clock&Data (ISO2) or Wiegand output (encrypted option – S31) / RS485 output (encrypted option – S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) – Compatible with EasySecure interface (encrypted communication)
Power supply: 9 – 15 VDC / Consumption: 150 mA/12 VDC max
Color: black or white – Other possibilities for cover customization
Operating temperatures: – 30°C to + 70°C / – 22°F to + 158°F
Resistance: IP65 level (excluding connectors) – Weather-resistant with waterproof electronics (certification CEI NF EN 61086) / Humidity: 0 – 95%
Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL, RoHS & UL294 Indoor & Outdoor
Functions: Read only CSN, pre-configured (Easyline – PC2) and secure (file, sector) / Protocol-driven (read-write)
Reading distances: 0 – 6 cm / 0 – 2.36’’ with RFID / 0 – 20 m / 0 – 65.6 ft with Bluetooth®
Material: ABS-PC-UL-V0 (black) / ASA-PC-UL-V0 UV (white)
Dimensions (h x w x d): 111.5 x 42.2 x 22 mm / 4.39’’ x 1.66’’ x 0.86’’
Protection: reinforced vandal proof structure IK10 / Accelerometer-based tamper detection system
