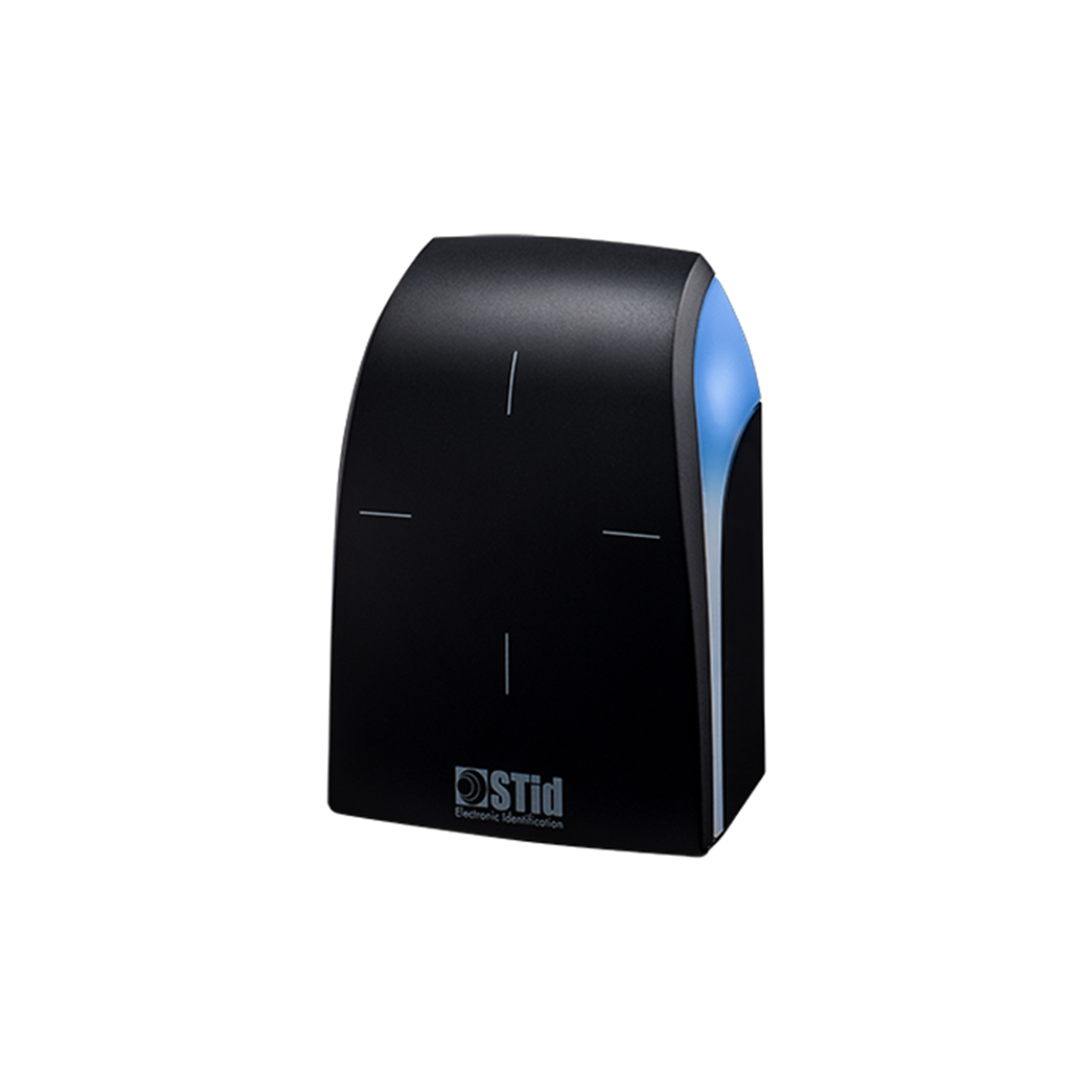

ARCS-A/BT Easyline – 13.56 MHz DESFire® EV2 + Bluetooth® pre-configured standard reader

Key features:

• Interoperable:  The reader’s Wiegand output easily is compatible with most Wiegand protocol access control panels.Various formats are available: Wiegand 32 or 37 bits.
• Configuration is not required:  The ARCS-A/BT Easyline Bluetooth reader is pre-configured for immediate deployment. Plug & Play implementation, no configuration is required to read Easyline RFID or mobile credentials
• Multi-technology reader: Easy to manage extensions, upgrades and technology migrations with ARCS-A/BT Easyline
• Easy to install: The ARCS-A/BT Easyline is a RFID / Bluetooth^® reader can be installed on any surface (metal, concrete, brick) without spacers. It is suitable for surface mounted wall installations and compatible with European and American flush-mounting boxes. The removable terminal block in the reader offers great installation flexibility.
• Durability to withstand tough environments: The ARCS-A/BT Easyline can withstand harsh environments, operates outside (IP65 level), and has a IK10-certified vandal-proof structure. It has an operating temperature range of -30°C to +70°C and humidity tolerance of 0-95%
• Enhanced security: Data encryption in the ARCS-A/BT Easyline reader and mutual authentication between the card and reader offers enhances security.
• Advanced security features: Latest MIFARE® DESFire® EV2 contactless chip technologies with advanced data security mechanisms

  Secure Messaging EV2: Secure transaction method based on AES-128 safeguards against interleaving and replay attacks.

  Proximity Check: Enhanced defence against relay attacks

  Security-standard encryption and sophisticated key management mechanisms to prevent card duplication duplicated or compromised data

  Mutual card-reader authentication

  Specifications:

  Frequency: 13.56 MHz + Bluetooth® (Low Energy)

  Chip: STid Mobile ID® (virtual card), MIFARE® DESFire® EV2, NFC (HCE)

  Interfaces: Wiegand 32 or 37 bits

  Power supply: 7 – 28 VDC / 150 mA/12 VDC max

  Color: Black

  Operating temperatures: – 30°C to + 70°C

  Protection: IK10 certified reinforced vandal-proof structure

  Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL, RoHS & UL294 Indoor & Outdoor

  Functions: Pre-configured secure read only

  Reading distances: 0 – 8 cm in RFID / 0 – 20 m in Bluetooth®

  Material: ABS-PC UL-V0 (black)

  Dimensions (h x w x d): 106,64 x 80 x 25,70 mm

  Storage temperature: -40°C to +85°C

  Resistance: IP65 level (excluding connectors) – weather, water and dust resistant (CEI NF EN 61086 certification) / Humidity: 0 – 95%
