ByteCool – Direct to Chip Liquid Cooling

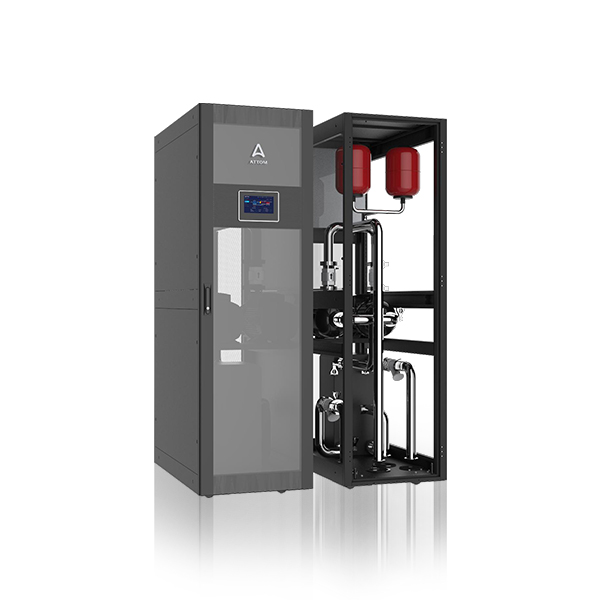

Coolant Distribution Units (CDUs) (BT-050-CL, BT-350-CL, BT-010-CA, BT-060-CL)

• 19-inch rack-compatible design for smooth integration into existing IT infrastructure
• Smart control interface enables both local and remote system management
• Plug and play installation with self-healing quick connectors
• Cooling types: Liquid-to-liquid and liquid-to-air
• Capacity range: 10.5 kW to 355.5 kW
• Operating temperature: Supply at 45 °C
• Coolants supported: Water, or water-glycol mixtures
• Mounting: Rack, floor, or row-mounted, depending on model

Manifolds & Connectors

• Built from stainless steel for strength and longevity
• Plug-and-play design with dry-disconnect and quick-connect compatibility
• Interfaces efficiently between server cold plates and the CDUs
• Flexible routing options, supports vertical and horizontal loop configurations

ChillFlow Free Cooling Chiller (CF-50 & CF-350)

• Cooling capacity in DX and FC mode: 50–350 kW / 52–390 kW
• Optimized for natural cooling at lower ambient temperatures
• Threaded internal piping ensures high-efficiency heat transfer
• Operates reliably with water or water-ethylene glycol mixtures
• Compatible with eco-friendly refrigerants such as R407C and R134A
• Optional wet-film evaporative cooling to improve intake air efficiency and lower PUE
• Built-in design verification through extensive testing

Dry Cooler (KSF50DC & KSF350DC)

• Comprises a high-efficiency heat exchange system
• Cooling capacity: 50 kW and 350 kW respectively
• Works with water, glycol, or mixed coolant for various ambient conditions
• VDC fan configuration
• Operating temperature range: –35 °C to +35 °C
• Optional wet-film element adds evaporative cooling to reduce intake air temperature
• Corrosion-resistant construction supports long-term outdoor operation
